MI-200™ / MI-J00™ DC-DC 轉換器
支持傳統設計的堅固 DC-DC 轉換器
MI 系列專門針對採用分散式電源架構的應用，基於 Vicor 的 VI-200/VI-J00 系列零電流開關、元件級 DC-DC 轉換器。MI 系列工作頻率高達 1MHz，可提供功率密度、效率、雜訊、易用性和可靠性方面的先進性能。Vicor 的行業標準封裝使 MI 系列可滿足濕度、菌類、鹽、霧、爆炸性氣體、加速度、振動和衝擊等 MIL-STD-810 環境要求。標準功能，如寬輸出調節/編程、限流、遠端採樣補償、邏輯啟用/禁用，以及閉鎖 OVP 和 OTP 組合，為軍用電源系統提供了高度的保護、多功能性，以及可靠性。
篩選產品
0 個產品
Viewing
of
###
25
of
| 型號 | Datasheet | 輸入電壓 (V) | 輸出電壓 (V)* | 功率 (W) | 封裝 | 溫度 | Dimensions in. | Dimensions mm | Packaging Option | 加入購物車/查看詳情 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 3 |
功率 (W): 99 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 5 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 5 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 5 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 5 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 5 |
功率 (W): 50 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 5 |
功率 (W): 50 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 5 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 10 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 10 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 12 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 12 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 12 |
功率 (W): 50 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 12 |
功率 (W): 50 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 15 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 15 |
功率 (W): 50 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 15 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 15 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 18 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 18 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 24 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 24 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 24 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 28 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 28 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 28 (18 - 50) |
輸出電壓 (V)*: 48 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 155 (100 - 210) |
輸出電壓 (V)*: 12 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 155 (100 - 210) |
輸出電壓 (V)*: 15 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 155 (100 - 210) |
輸出電壓 (V)*: 24 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 155 (100 - 210) |
輸出電壓 (V)*: 28 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 155 (100 - 210) |
輸出電壓 (V)*: 48 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 3 |
功率 (W): 66 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 3 |
功率 (W): 66 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 5 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 5 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 5 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 12 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 12 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 12 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 12 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 12 |
功率 (W): 50 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 24 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 24 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 24 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 24 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 28 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 28 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 28 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 28 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 165 (100 - 310) |
輸出電壓 (V)*: 48 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 5 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 5 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 5 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 12 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 15 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 15 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 15 |
功率 (W): 50 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 15 |
功率 (W): 50 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 24 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -55 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 28 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 28 |
功率 (W): 75 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
| Datasheet: | 輸入電壓 (V): 270 (125 - 400) |
輸出電壓 (V)*: 48 |
功率 (W): 100 |
封裝: Full Brick |
溫度: -40 to 85°C |
Dimensions in.: 4.60 x 2.4 x 0.50in |
Dimensions mm: 116.8 x 61.0 x 12.7mm |
Packaging Option: | View Details | ||
Power System Designer
採用電源系統設計工具快速查找產品Watch demo video
Output
Min output:
Minimum output:
Nom output:
Nominal output:
Max output:
Maximum output:
特性與優勢
特性與優勢
遠端採樣補償
限流
OVP 和熱關斷
高功率輸出的電源升壓器
資源
- VI-200, VI-J00 设计指南和应用手册
- 1. 零電流開關
- 2. DC-DC 轉換器接腳分佈
- 3. 模組使用注意事項
- 4. 過流保護
- 5. 輸出電壓調節
- 6. 多門極輸入連接
- 7. 應用電路/轉換器陣列設計注意事項
- 8. 使用增壓器和並聯陣列
- 9. EMC 注意事項
- 10. 可選輸出濾波器
- 11. 電池充電器 (BatMod)
- 12. AC 輸入模組 (AIM / MI-AIM)
- 13. 諧波衰減模組 (HAM)
- 14. 輸入衰減模組 (IAM / MI-IAM)
- 15. 漣波衰減模組 (RAM / MI-RAM)
- 16. 離線前端
- 17. DC 輸入電源系統 (ComPAC / MI-ComPAC系列)
- 18. AC 輸入電源系統 (FlatPAC系列)
- 19. AC 輸入電源系統 (PFC FlatPAC)
- 20. 散熱模組和安裝注意事項
- 21. 熱曲線
- 22. 無鉛接腳 (RoHS)
- 23. 鉛錫接腳
- 24. 模組封裝選項（SlimMod、FinMod、BusMod和MegaMod系列）
- 25. 產品重量
- 26. 技術術語表
- cURus – UL 60950-1, CSA 60950-1
- cTÜVus – EN 60950-1, UL 60950-1, CSA 60950-1
- CE 標示 – 低電壓指令 (2014/35/EU)
- CE 標示 – 低電壓指令 (2014/35/EU) 和 RoHS 修訂指令 (2011/65/EU)
- CB 認證 – IEC 60950
- cURus – UL 60950-1, CSA 60950-1
- cTÜVus – EN 60950-1, UL 60950-1, CSA 60950-1
- CE 標示 – 低電壓指令 (2009/95/EC)
- CE 標示 – 低電壓指令(2006/95/EC) 和 RoHS 修訂指令 (2011/65/EU)
- CB 認證 – IEC 60950
加州居民請參閱加州 65 號提案的內容
- 全尺寸 FinMod DC-DC 轉換器外形圖 (-F1)
PDF DXF - 全尺寸 FinMod DC-DC 轉換器外形圖 (-F2)
PDF DXF - 全尺寸 FinMod DC-DC 轉換器外形圖 (-F3)
PDF DXF - 全尺寸 FinMod DC-DC 轉換器外形圖 (-F4)
PDF DXF - 半尺寸 FinMod DC-DC 轉換器外形圖 (-F1)
PDF DXF - 半尺寸 FinMod DC-DC 轉換器外形圖 (-F2)
PDF DXF - 半尺寸 FinMod DC-DC 轉換器外形圖 (-F3)
PDF DXF - 半尺寸 FinMod DC-DC 轉換器外形圖 (-F4)
PDF DXF - 全尺寸 SlimMod DC-DC 轉換器外形圖
PDF DXF - 半尺寸 SlimMod DC-DC 轉換器外形圖
PDF DXF - 堅固的機箱安裝外殼，適用於 MI-200 模組*（預安裝時在模組編號後添加 B1 後綴）
PDF DXF - 堅固的機箱安裝外殼，適用於 MI-J00 模組*（預安裝時在模組編號後添加 B1 後綴）
PDF DXF
Promo Component
在資源庫中查看更多檔案、影片和案例研究
相關產品
相關產品
支援傳統設計的原有 DC-DC 轉換器

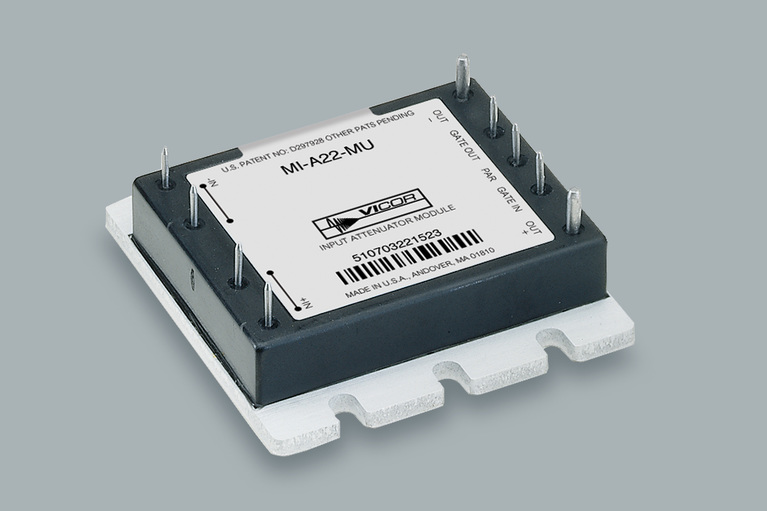

適用於 MI-200/MI-J00 的堅固輸入濾波器模組
適用於 VI-200/VI-J00 的堅固輸出漣波衰減器
設立了「磚型」標準的 DC-DC 轉換器

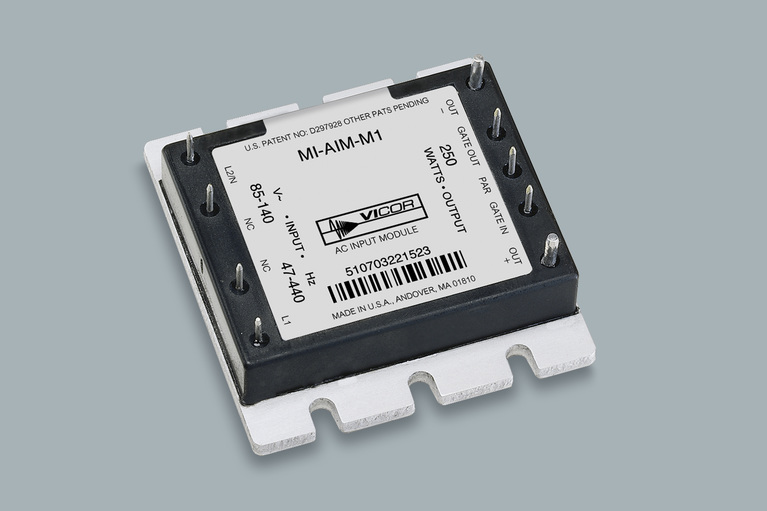

適用於 MI-2xxxx/MI-Jxxxx 的堅固 AC 輸入濾波器和整流器
