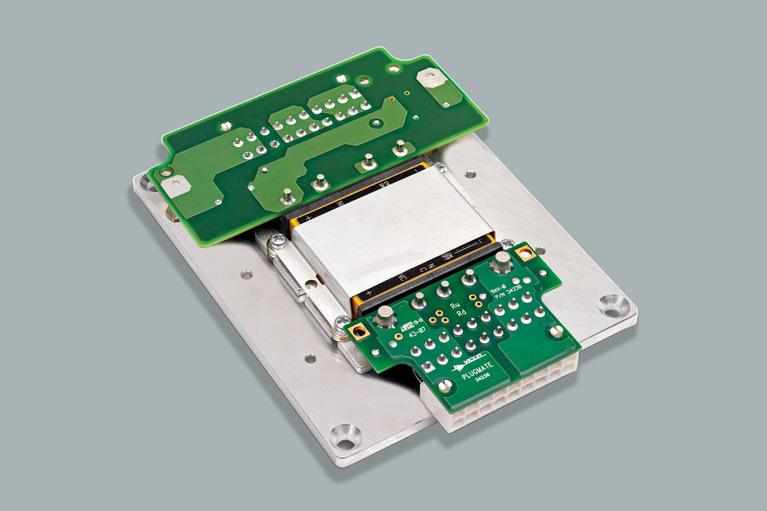

MIL-COTS M-FIAM™ Filter Input Attenuator Module
Rugged input filter module for Maxi, Mini, Micro
The M-FIAM is a DC front-end module that provides EMI filtering and transient protection. The M-FIAM line of products enables designers using Vicor 24, 28 or 300VIN Maxi, Mini, Micro DC-DC converters or 28VIN MIL-COTS VI Chip modules to meet conducted emission/conducted susceptibility per MIL-STD-461E and input transient surges per MIL-STD-704 or MIL-STD-1275. In addition, the MVA-FIAM5B and MVA-FIAM9 offer designers using the M-FIAM5B or M-FIAM9 the capability of coldplate mounting with convenient input and output connectors.

Filter Products
Part Number | Input (V) | Output (A) | Transient Compliance | Module Compatibility | Pin Style | Temperature | Baseplate | Dimensions | Add to cart / view details | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|
M-FIAM3H11
|
![]() |
Part Number: M-FIAM3H11 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3H22
|
![]() |
Part Number: M-FIAM3H22 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3H22
|
![]() |
Part Number: M-FIAM3H22 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3H23
|
![]() |
Part Number: M-FIAM3H23 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3HG1
|
![]() |
Part Number: M-FIAM3HG1 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3HG2
|
![]() |
Part Number: M-FIAM3HG2 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3HN1
|
![]() |
Part Number: M-FIAM3HN1 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3HN2
|
![]() |
Part Number: M-FIAM3HN2 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3HN3
|
![]() |
Part Number: M-FIAM3HN3 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3HS1
|
![]() |
Part Number: M-FIAM3HS1 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3HS3
|
![]() |
Part Number: M-FIAM3HS3 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3M11
|
![]() |
Part Number: M-FIAM3M11 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3M11
|
![]() |
Part Number: M-FIAM3M11 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3M21
|
![]() |
Part Number: M-FIAM3M21 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3M22
|
![]() |
Part Number: M-FIAM3M22 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3MG1
|
![]() |
Part Number: M-FIAM3MG1 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3MG3
|
![]() |
Part Number: M-FIAM3MG3 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3MN1
|
![]() |
Part Number: M-FIAM3MN1 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3MN2
|
![]() |
Part Number: M-FIAM3MN2 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3MN3
|
![]() |
Part Number: M-FIAM3MN3 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM3MS1
|
![]() |
Part Number: M-FIAM3MS1 | : |
Input (V):
180 – 375
|
Output (A):
3
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
300 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BH11
|
![]() |
Part Number: M-FIAM5BH11 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BH12
|
![]() |
Part Number: M-FIAM5BH12 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BH13
|
![]() |
Part Number: M-FIAM5BH13 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BH21
|
![]() |
Part Number: M-FIAM5BH21 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BH22
|
![]() |
Part Number: M-FIAM5BH22 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BHG1
|
![]() |
Part Number: M-FIAM5BHG1 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BH23
|
![]() |
Part Number: M-FIAM5BH23 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BHG2
|
![]() |
Part Number: M-FIAM5BHG2 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BHK2
|
![]() |
Part Number: M-FIAM5BHK2 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BHN1
|
![]() |
Part Number: M-FIAM5BHN1 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BHN2
|
![]() |
Part Number: M-FIAM5BHN2 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BHN3
|
![]() |
Part Number: M-FIAM5BHN3 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BHS1
|
![]() |
Part Number: M-FIAM5BHS1 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BHS3
|
![]() |
Part Number: M-FIAM5BHS3 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BM11
|
![]() |
Part Number: M-FIAM5BM11 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BM12
|
![]() |
Part Number: M-FIAM5BM12 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BM21
|
![]() |
Part Number: M-FIAM5BM21 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BM21-01
|
![]() |
Part Number: M-FIAM5BM21-01 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BM22
|
![]() |
Part Number: M-FIAM5BM22 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BM23
|
![]() |
Part Number: M-FIAM5BM23 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BMF1
|
![]() |
Part Number: M-FIAM5BMF1 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Short RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BMG1
|
![]() |
Part Number: M-FIAM5BMG1 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BMN1
|
![]() |
Part Number: M-FIAM5BMN1 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BMN2
|
![]() |
Part Number: M-FIAM5BMN2 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM5BMN3
|
![]() |
Part Number: M-FIAM5BMN3 | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin Maxi, Mini, Micro
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BH11
|
![]() |
Part Number: M-FIAM7BH11 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BH12
|
![]() |
Part Number: M-FIAM7BH12 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BH21
|
![]() |
Part Number: M-FIAM7BH21 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BHN2
|
![]() |
Part Number: M-FIAM7BHN2 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BM11
|
![]() |
Part Number: M-FIAM7BM11 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BHS1
|
![]() |
Part Number: M-FIAM7BHS1 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BM21
|
![]() |
Part Number: M-FIAM7BM21 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BM22
|
![]() |
Part Number: M-FIAM7BM22 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BM23
|
![]() |
Part Number: M-FIAM7BM23 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BMG1
|
![]() |
Part Number: M-FIAM7BMG1 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BMG3
|
![]() |
Part Number: M-FIAM7BMG3 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BMN1
|
![]() |
Part Number: M-FIAM7BMN1 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM7BMN3
|
![]() |
Part Number: M-FIAM7BMN3 | : |
Input (V):
14 – 50
|
Output (A):
10
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D, DO-160E
|
Module Compatibility:
28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-55 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9H11
|
![]() |
Part Number: M-FIAM9H11 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9H12
|
![]() |
Part Number: M-FIAM9H12 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9H13
|
![]() |
Part Number: M-FIAM9H13 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9H21
|
![]() |
Part Number: M-FIAM9H21 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9H22
|
![]() |
Part Number: M-FIAM9H22 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9H23
|
![]() |
Part Number: M-FIAM9H23 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HF1
|
![]() |
Part Number: M-FIAM9HF1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HF2
|
![]() |
Part Number: M-FIAM9HF2 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HG1
|
![]() |
Part Number: M-FIAM9HG1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HG2
|
![]() |
Part Number: M-FIAM9HG2 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HG3
|
![]() |
Part Number: M-FIAM9HG3 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HK1
|
![]() |
Part Number: M-FIAM9HK1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HK3
|
![]() |
Part Number: M-FIAM9HK3 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HN1
|
![]() |
Part Number: M-FIAM9HN1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HN2
|
![]() |
Part Number: M-FIAM9HN2 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HN3
|
![]() |
Part Number: M-FIAM9HN3 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9HS1
|
![]() |
Part Number: M-FIAM9HS1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9M11
|
![]() |
Part Number: M-FIAM9M11 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9M12
|
![]() |
Part Number: M-FIAM9M12 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9M21
|
![]() |
Part Number: M-FIAM9M21 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9M21-01
|
![]() |
Part Number: M-FIAM9M21-01 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9M22
|
![]() |
Part Number: M-FIAM9M22 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9M23
|
![]() |
Part Number: M-FIAM9M23 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Tin/Lead
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MG1
|
![]() |
Part Number: M-FIAM9MG1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MG2
|
![]() |
Part Number: M-FIAM9MG2 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MG3
|
![]() |
Part Number: M-FIAM9MG3 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MK1
|
![]() |
Part Number: M-FIAM9MK1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MK2
|
![]() |
Part Number: M-FIAM9MK2 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Extra Long RoHS Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MN1
|
![]() |
Part Number: M-FIAM9MN1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MN2
|
![]() |
Part Number: M-FIAM9MN2 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Threaded
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MN3
|
![]() |
Part Number: M-FIAM9MN3 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Long Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MS1
|
![]() |
Part Number: M-FIAM9MS1 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Slotted
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
M-FIAM9MS3
|
![]() |
Part Number: M-FIAM9MS3 | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Short Modumate Gold
|
Temperature:
-40 to 100°C
|
Baseplate:
Through hole
|
Dimensions:
2.28" x 2.2" x 0.5"
57,9 x 55,9 x 12,7 mm |
View details |
MVA-FIAM5BH
|
![]() |
Part Number: MVA-FIAM5BH | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin MIL-COTS VI Chips
|
Pin Style:
Lug
|
Temperature:
-40 to 100°C
|
Baseplate:
Coldplate
|
Dimensions:
4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm |
View details |
MVA-FIAM5BM
|
![]() |
Part Number: MVA-FIAM5BM | : |
Input (V):
14 – 36
|
Output (A):
20
|
Transient Compliance:
MIL-STD-704E/F
|
Module Compatibility:
24 Vin MIL-COTS VI Chips
|
Pin Style:
Lug
|
Temperature:
-55 to 100°C
|
Baseplate:
Coldplate
|
Dimensions:
4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm |
View details |
MVA-FIAM9H
|
![]() |
Part Number: MVA-FIAM9H | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Lug
|
Temperature:
-40 to 100°C
|
Baseplate:
Coldplate
|
Dimensions:
4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm |
View details |
MVA-FIAM9M-C
|
![]() |
Part Number: MVA-FIAM9M-C | : |
Input (V):
10 – 36
|
Output (A):
18
|
Transient Compliance:
MIL-STD-704E/F, MIL-STD1275A/B/D
|
Module Compatibility:
24/28 Vin MIL-COTS VI Chips
|
Pin Style:
Lug
|
Temperature:
-55 to 100°C
|
Baseplate:
Coldplate
|
Dimensions:
4.69" x 3.62" x 0.81"
119,4 x 92,0 x 20,6 mm |
View details |
Power System Designer
Features and Benefits
Features and benefits
Various transient compliance
MIL-STD-461 EMI compliance
Inrush current limiting
Low-profile mounting option
Resources
Resources for the design engineer

From Pikes Peak to Bonneville Salt Flats, Lightning Motorcycles electric bike outpaces the combustion engine motorcycles
Lightning Motorcycles engineered all-electric bike excels in every category. See how Vicor power modules support this next-gen bike

HIRO pushes Europe to the edge with high-performance microdata centers
From supporting brain surgery to driving smart factories while saving power—HIRO is driving Europe to the edge with innovative computing concepts

VideoRay drives safe, effective underwater exploration leveraging AI and today’s newest technologies
Vicor Powering Innovation podcast discusses the proliferation of ROV applications and how VideoRay is responding to new underwater missions
- Maxi, Mini, Micro Design Guide and Applications Manual
- 1. High Density DC-DC Converter Technology
- 2. Control Pin Functions and Applications
- 3. Design Requirements
- 4. EMC Considerations
- 5. Current Sharing in Power Arrays
- 6. Thermal Performance Information
- 7. Autoranging Rectifier Module (ARM)
- 8. Filter / Autoranging Rectifier Module (FARM)
- 9. Modular AC Front-end System (ENMod)
- 10. High Boost HAM
- 11. Filter Input Attenuator Module (FIAM)
- 12. Output Ripple Attenuator Module (MicroRAM)
- 13. Lead Free Pins (RoHS)
- 14. Tin Lead Pins
- 15. Surface Mount Socketing System (SurfMate)
- 16. Through-hole Socket-mount System (InMate)
- 17. Glossary of Technical Terms
- M-FIAM3 – CE Marked – Low Voltage Directive (2014/35/EU)
- M-FIAM3 – CE Marked – Low Voltage Directive (2014/35/EU) and RoHS Recast Directive (2011/65/EU)
- M-FIAM5B – CE Marked – Low Voltage Directive (2014/35/EU)
- M-FIAM5B – CE Marked – Low Voltage Directive (2014/35/EU) and RoHS Recast Directive (2011/65/EU)
- M-FIAM7 – CE Marked – Low Voltage Directive (2014/35/EU)
- M-FIAM7 – CE Marked – Low Voltage Directive (2014/35/EU) and RoHS Recast Directive (2011/65/EU)
- M-FIAM7B – CE Marked – Low Voltage Directive (2014/35/EU)
- M-FIAM7B – CE Marked – Low Voltage Directive (2014/35/EU) and RoHS Recast Directive (2011/65/EU)
- M-FIAM9 – CE Marked – Low Voltage Directive (2014/35/EU)
- M-FIAM9 – CE Marked – Low Voltage Directive (2014/35/EU) and RoHS Recast Directive (2011/65/EU)
Promo Component
Related Products
Related Products

Legacy DC-DC converters supporting traditional designs

The DC-DC converter that established the “brick” standard
